Because, if I run just the N3 portion of the code and give G54 X0 and Z0 at the point it should start N3, everything works. After about 30 tries, I discovered that right before the tool change for the DRILL1, the G54 resets, seems like it resets anyway. The problem that I am having in post is right after the N3 subroutine (portion of code below) what happens is G54 works fine until the G19 command to change the plane, then the absolute coordinate system of the machine goes nuts and X becomes 619 and Z becomes 440 something and the turret wants to fly off the machine. The part that I am trying to machine is from an example file, you can find the file as it is in my shared file:
rotary tool spindle torque: 29.5 ft lb f <3 min>, 73.However, I discovered something weird and I think I understand where it's happening but, don't know why. BMT (Built-in Motor Turret) installed in the turret High-speed rotary tool spindle: 10,000 rpm Max. Lyndex-Nikken DMG Mori Seiki NLX4000 High Torque Live Tools.
Dmg mori nlx 2500 download#

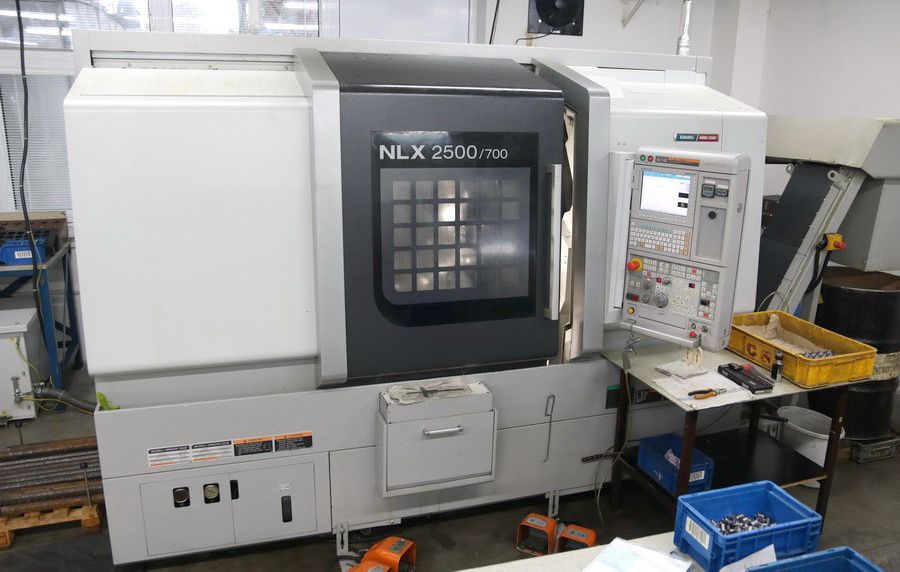

My machine is the NLX 2500/700 SY model and most things are working with the post as far as I can tell. Continue with reading or go to download page. This machine can work with a spindle speed up to 4000 rpm and a bar passage 80 mm.
Equipped with an DMG MORI ERGOLINE CELOS Control unit, this machine has mainly worked with steel during the past and comes with an additional power transformer as well as a tool setter. when the latest dmg mori turning center nlx 4000 < through- spindle hole diameter 185 mm ( 7. I am trying to post, from Fusion, using the post provided by Autodesk for the NLX 2500. This DMG MORI NLX 2500SY Lathe was manufactured in 2017. This Japanese DMG MORI NLX 2500/500 Lathe was built 2014 and has a production history of 3171 working hours. The model flexibly handles various workpieces with a highly rigid bed, powerful turning capability and outstanding milling performance with the matured BMT (Built-in Motor Turret).I am having a problem that I can't put my finger on and need some guidance, please. Slideway area ratio (compared with conventional machine): 50 UP (X-axis) / 90 UP (Z-axis) Large-diameter ball screws adopted The largest through spindle hole diameter in its class: 5.7 in / 7. The NLX 2500 1250 is a high-rigidity, high-precision turning center with a distance between centers of 1,250 mm. Slideways on X-, Z-, and Y-axis for higher vibration damping performance and dynamic rigidity High rigidity.
